ESP32-C3 Dual Type-C WiFi Bluetooth BLE 5.0 DevKitM-1 Core Development Board

The ESP32-C3 Dual Type-C DevKitM-1 is an entry-level development board designed for IoT and embedded systems projects. Powered by the ESP32-C3-MINI-1 module, it integrates Wi-Fi and Bluetooth Low Energy (BLE) 5.0 functionalities, making it ideal for wireless communication applications. Its compact design and versatile connectivity options allow developers to easily interface peripherals using jumper wires or breadboards.

Features:

• Wi-Fi and Bluetooth LE Combo: Supports 802.11b/g/n/e/i and Bluetooth 5.0 with Mesh capabilities.
• RISC-V Architecture: Single-core 32-bit microcontroller with a maximum clock speed of 160 MHz.
• Memory: Includes 400 KB internal RAM and 4 MB embedded flash.
• Rich Peripherals:
  • 12-bit ADC (up to 6 channels)
  • SPI (3x), I2S (1x), I2C (1x), UART (2x)
  • PWM with up to 6 channels
  • CAN bus compatibility via TWAI
  • Temperature sensor
• Cryptographic Hardware Acceleration: Features RNG, ECC, RSA, SHA-2, and AES for secure applications.
• Dual Type-C USB Ports: Simplifies power and data transfer.

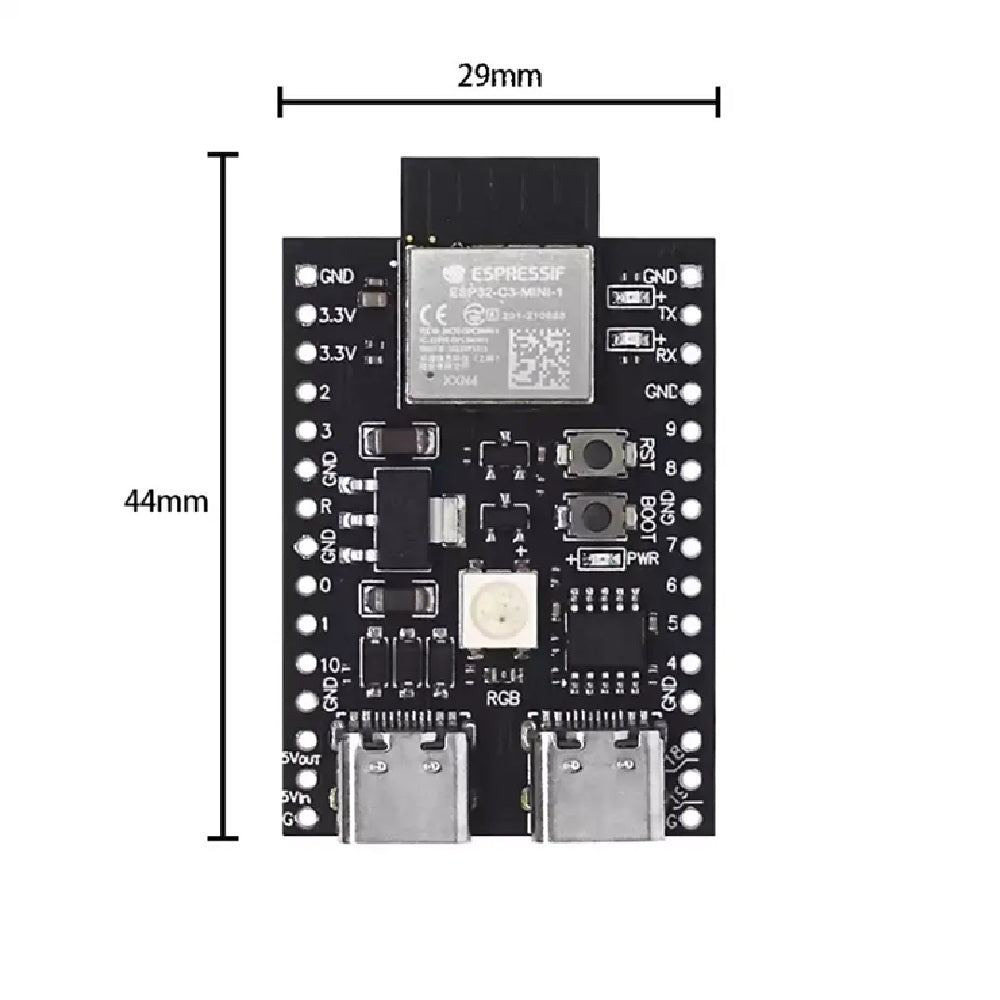

• Compact Design: Dimensions of just 44.31 mm x 25.40 mm.
• Wide Operating Temperature Range: Suitable for environments ranging from -40°C to +85°C (-40°F to +185°F).

Applications:

1. IoT Solutions:
   • Smart home devices
   • Industrial automation
   • Wearable technology
2. Wireless Communication:
   • Bluetooth Mesh networks
   • Wi-Fi-enabled sensors
3. Embedded Systems Development:
   • Prototyping with Arduino or Espressif IoT frameworks
   • Secure communication systems using cryptographic features

1x ESP32-C3 Dual Type-C DevKitM-1

Country of origin : China

The Header Pins are already soldered on the board.

HSN Code: 85177090
