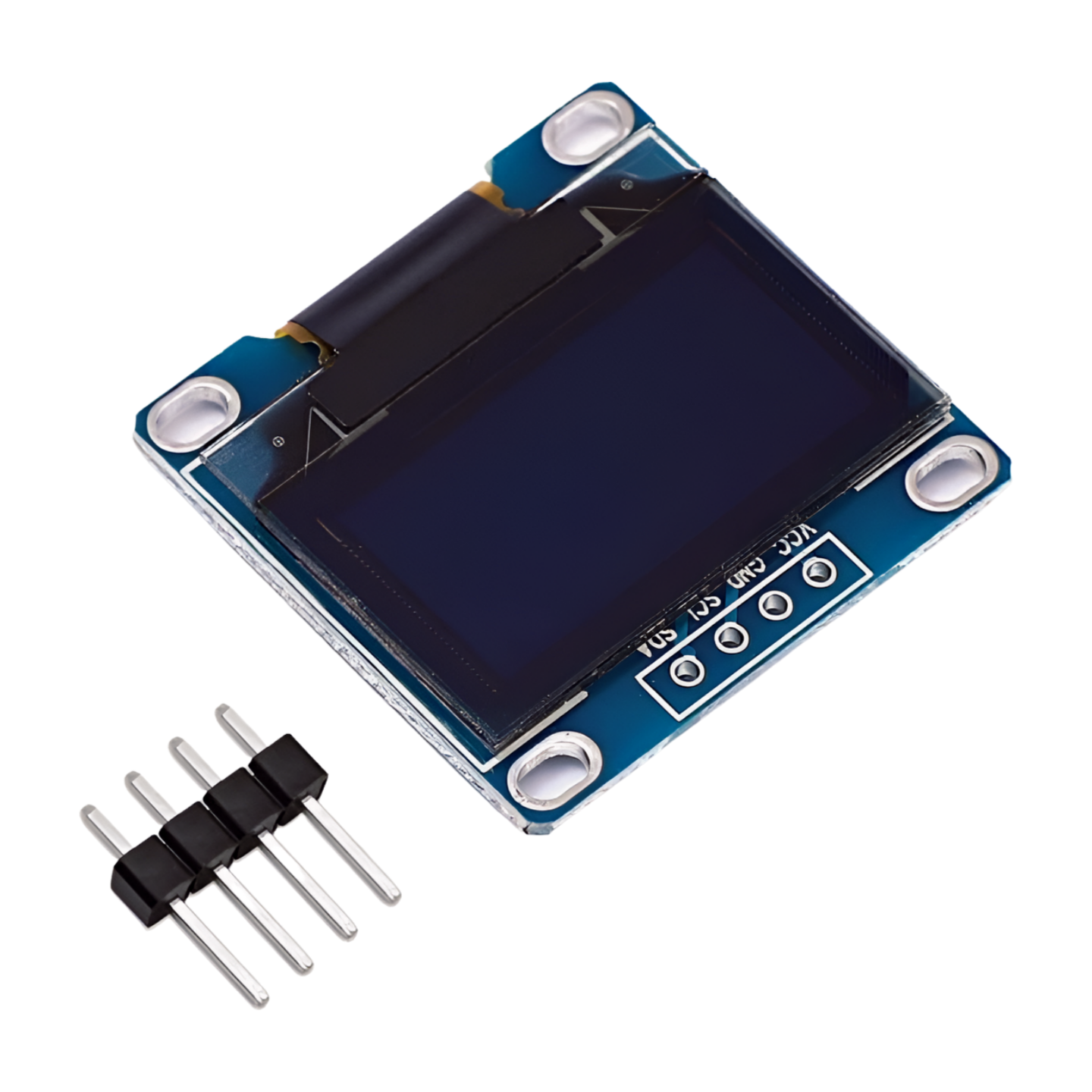

0.96 inch 128×64 I2C 4Pin OLED Display Module (Blue)

0.96 inch 128×64 I2C 4Pin OLED Display Module (Blue)

SKU: CT-0008

Regular price ₹200.00
Regular price Sale price ₹200.00
Sale Sold out Including GST
Style

4 in stock

  • SSD1306 compatible Driver IC
  • Supports I2C interface
  • Pixel Color: Blue
  • Input Voltage: 3~5V
  • Resolution: 128 x 64 with Visual Angle >160°
Get it before using Express Shipping.
B2B customers can avail ₹30.50 ITC on this product.
Free Shipping over ₹499.
  • Safe Handling
  • Faster Shipping
  • Easy Return
View full details

This 0.96 inch I2C OLED Display Module features 128 x 64 LED display, low power consumption (0.08W when full screen lit) and I2C interface. With a driver IC of SSD1306 and a resolution of 128 x 64, this module also provides a visual angle of >160°. The pins include GND, VCC, SCL, and SDA, and it requires a 3-5V DC voltage.

The SSD1306 embeds with contrast control, display RAM, and oscillator, which reduces the number of external components and power consumption. It has 256-step brightness control. Data/Commands are sent from general MCU through the hardware selectable 6800/8000 series compatible Parallel Interface, I2C interface, or Serial Peripheral Interface. It is suitable for many compact portable applications, such as mobile phone sub-display, MP3 player and calculator, etc

Features:

  • SSD1306 compatible Driver IC
  • Supports I2C interface
  • Input Voltage: 3~5V
  • Resolution: 128 x 64 with Visual Angle >160°
  • Working Temperature: -30°C~70°C

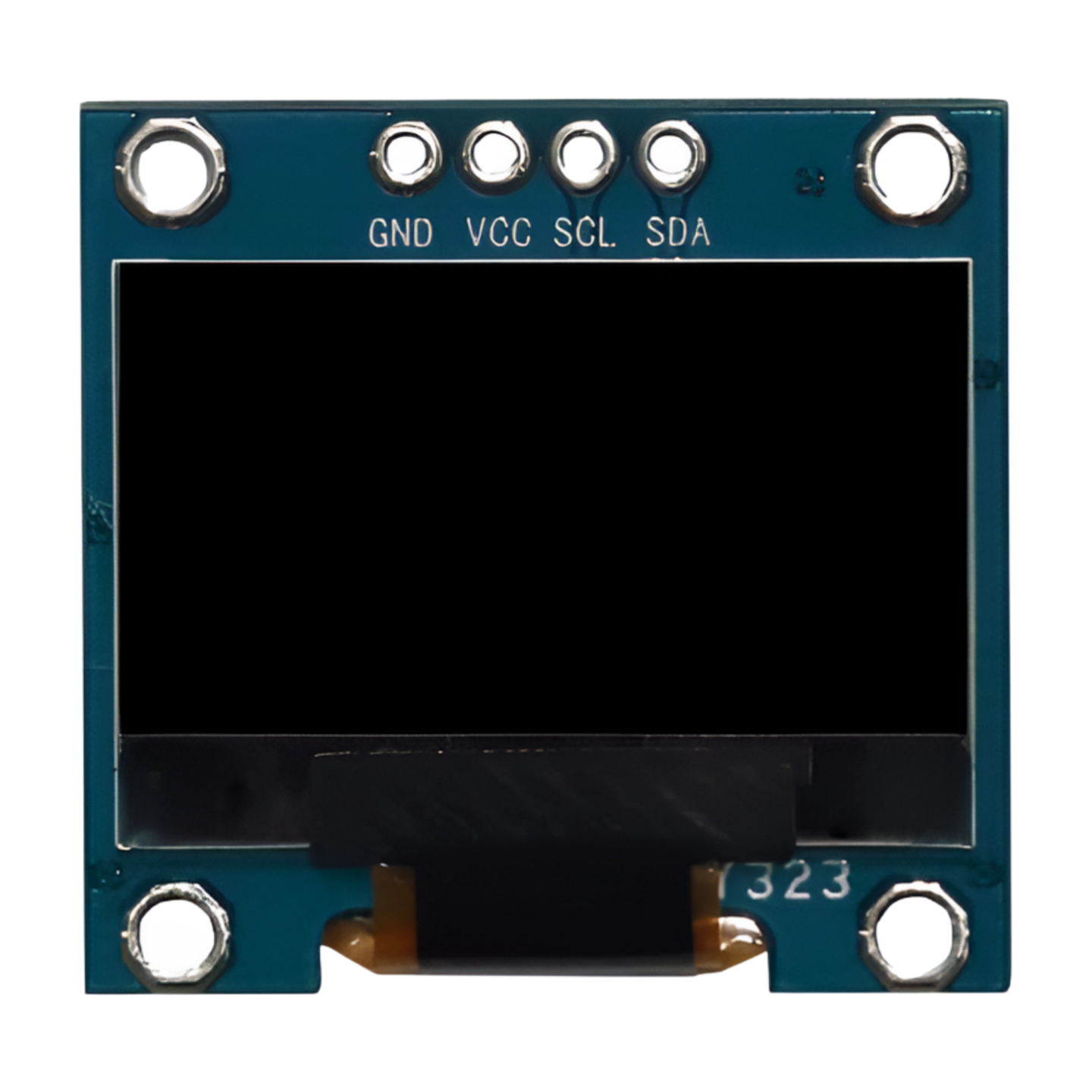

  • Pin Definition: GND,VCC,SCL,SDA
  • Pixel Color: Blue



Applications:

  1. Mobile phone secondary display
  2. MP3 Player
  3. Calculator
  4. RTC Clock



Pixel Color Blue
Input Voltage 3~5V
Resolution 128x64
Driver IC SSD1306/Compatible
Display Area 21.7 x 10.8mm
Interface I2C (IIC)
Number of Pins 4 (VCC,GND,SCL,SDA)
Product Dimensions 26.7 x 19.2 x 1.8mm
Operating range -30°C to +75°C
Product Weight 10 grams







Country of origin : China

Note: If the pins are unsoldered, the Header pins will be provided separately in the package

  1. 0.96 4 pin OLED Display (Blue)
  2. 4 pin Male-Male Header
