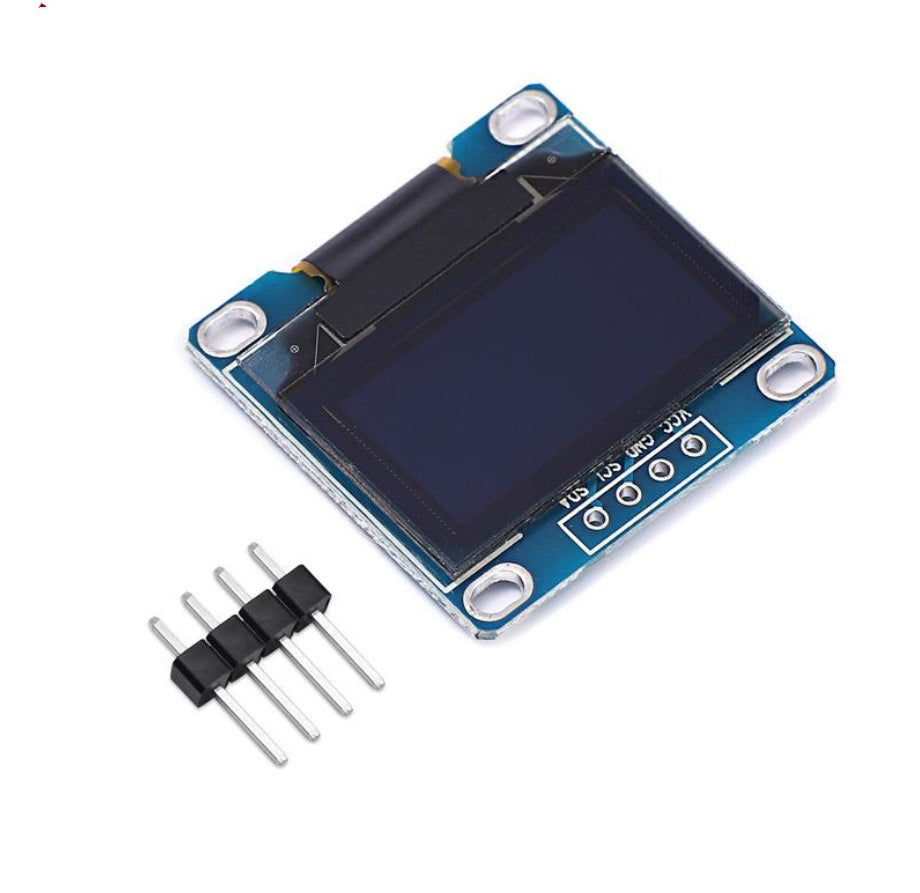

0.96 inch 128×64 I2C 4Pin OLED Display Module (White)

This 0.96 inch I2C OLED Display Module features 128 x 64 LED display, low power consumption (0.08W when full screen lit) and I2C interface. With a driver IC of SSD1306 and a resolution of 128 x 64, this module also provides a visual angle of >160°. The pins include GND, VCC, SCL, and SDA, and it requires a 3-5V DC voltage.

The SSD1306 embeds with contrast control, display RAM, and oscillator, which reduces the number of external components and power consumption. It has 256-step brightness control. Data/Commands are sent from general MCU through the hardware selectable 6800/8000 series compatible Parallel Interface, I2C interface, or Serial Peripheral Interface. It is suitable for many compact portable applications, such as mobile phone sub-display, MP3 player and calculator, etc

Features:

• SSD1306 compatible Driver IC
• Supports I2C interface
• Input Voltage: 3~5V
• Resolution: 128 x 64 with Visual Angle >160°
• Working Temperature: -30°C~70°C
• Pin Definition: GND,VCC,SCL,SDA
• Pixel Color: White

Applications:

1. Mobile phone secondary display
2. MP3 Player
3. Calculator
4. RTC Clock

Country of origin : China

Note: If the pins are unsoldered, the Header pins will be provided separately in the package.

0.96 4 pin OLED Display (White)

4 pin Male-Male Header
