LCD 16x2 display with attached PCF8574 (I2C Module)

LCD 16x2 display with attached PCF8574 (I2C Module)

SKU: CT-0065

Regular price ₹180.00
Regular price Sale price ₹180.00
Sale Sold out Including GST
Color

4 in stock

  • HD44780 compatible Driver IC
  • I2C interface Reduces the overall wirings
  • Input Voltage: 5V
  • Resolution: 16x2 characters, 5x8 Dots with Cursor
  • Interface Address: 0x27 (7bit) & 0x4E(8 bit)
  • Backlight Color: Blue/Yellow
  • Pixel Color: White/Black
Get it before using Express Shipping.
B2B customers can avail ₹27.45 ITC on this product.
Free Shipping over ₹499.
  • Safe Handling
  • Faster Shipping
  • Easy Return
View full details

The LCD1602 (16x2) is designed with an industry standard HD44780 equivalent LCD controller.

The module provides a simple and cost-effective solution for adding a 16×2 character display to your project. It offers a very clear and high contrast white text upon a blue background/backlight.

This display overcomes the drawback of LCD 1602 Parallel LCD Display in which you’ll waste about 8 Pins on your MCU for the display to get working. Luckily in this product, an I2C adapter is directly soldered right onto the pins of the display. So all you need to connect are the I2C pins, which shows a good library and little of coding.

The I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V. The values shown on the display can be either a simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the MCU is performing.

Features:

  • HD44780 compatible Driver IC
  • I2C interface Reduces the overall wirings
  • Input Voltage: 5V
  • Resolution: 16x2 characters, 5x8 Dots with Cursor
  • Interface Address: 0x27 (7bit) & 0x4E(8 bit)
  • Backlight Color: Blue/Yellow
  • Pixel Color: White/Black



Display Character Address Code:



Display Position 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
DD RAM Address - Row 1 80 81 82 83 84 85 86 87 88 89 8A 8B 8C 8D 8E 8F
DD RAM Address - Row 2 C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF

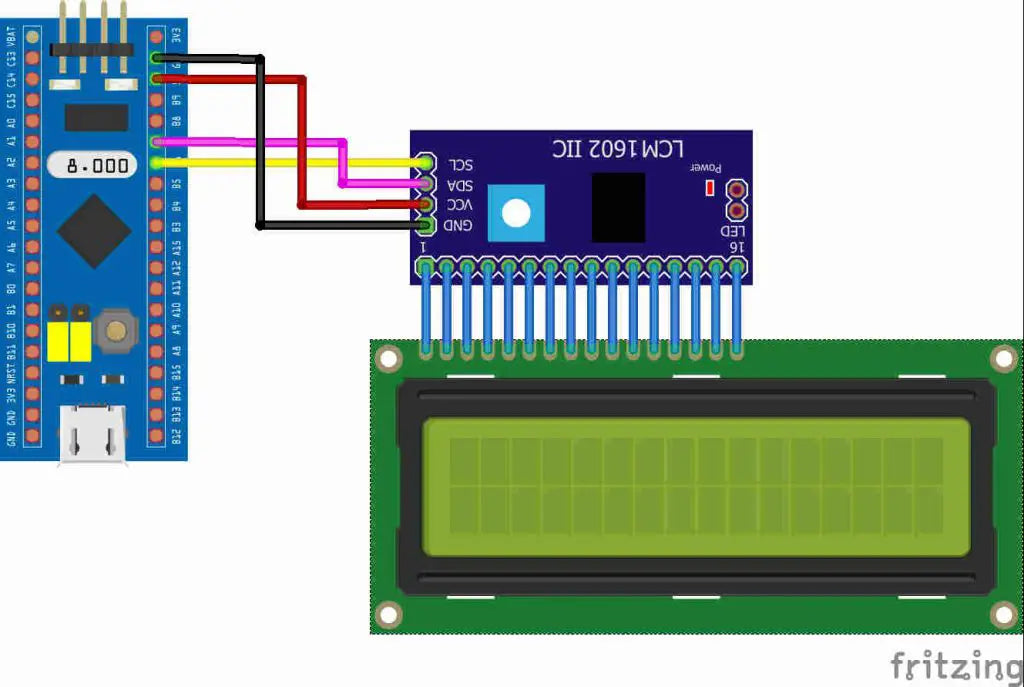

Pin No Symbol Function
1 Gnd GND(0V)
2 Vcc +5V
3 SDA Serial Data pin, Connect to MCU SDA
4 SCL Serial Clock pin, Connect to MCU SCL



Pixel Color White/Black
Backlight Color Blue/Yellow
Input Voltage 5V
Resolution 16x2 Characters
Driver IC HD44780/Compatible
Display Area 64 x 16mm
Interface I2C Mode
I2C Module PCF8574 (Soldered)
Slave Address 0x27 (7bit) & 0x4E(8 bit)
Product Dimensions 80 x 36mm
Operating range 0°C to 50°C
Product Weight 50 grams









Country of origin :China

Note: The PCF8574 I2C Module is already soldered at the back of the display.

  • 1x 16x2 LCD display with attached PCF8574 (I2C Module)
