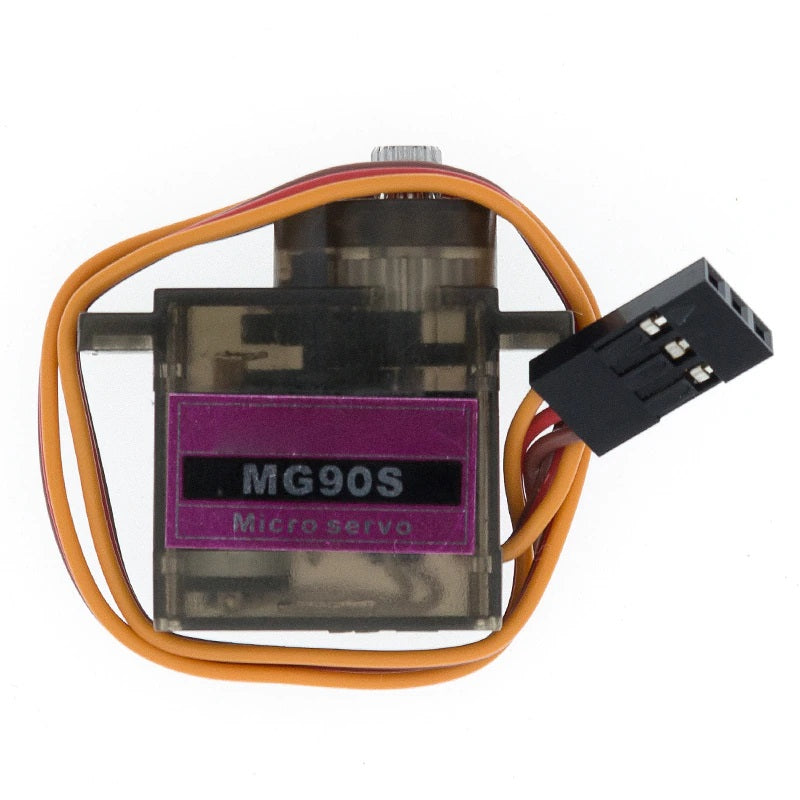

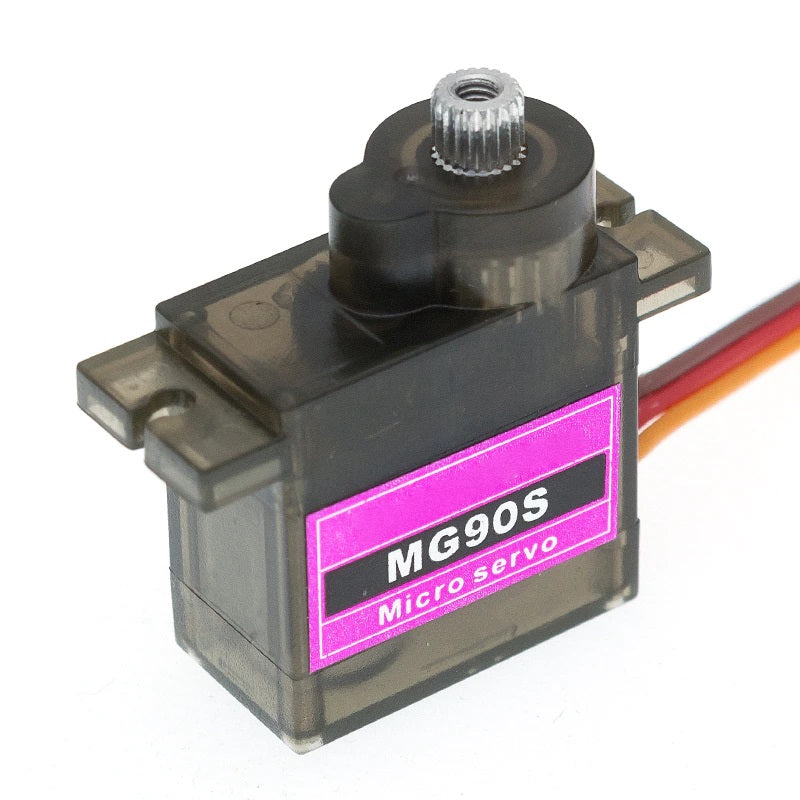

TowerPro MG90S Metal gear 9g Digital Servo motor (180 deg)

TowerPro MG90S Metal gear 9g Digital Servo motor (180 deg)

SKU: CT-0019

Regular price ₹130.00
Regular price Sale price ₹130.00
Sale Sold out Including GST

10 in stock

  • Operating Voltage: 4.8V to 6V (Typically 5V)
  • Max Stall Torque: 2.2 kg/cm (6V)
  • Operating speed is 0.1s/60° (4.8V)
  • Gear Type: Metal
  • Rotation : 0°-180°
Get it before .
B2B customers can avail ₹19.83 ITC on this product.
Free Shipping over ₹799.
  • Safe Handling
  • Faster Shipping
  • Easy Return
View full details

Tower Pro MG90S is a micro servo motor with metal gear. This small and lightweight servo comes with high output power, thus ideal for  RC Airplane, Quadcopter or Robotic Arms. Servo can rotate approximately 180 degrees (90 in each direction), and works just like the standard kinds but smaller. You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. It comes with a 3 horns (arm).

The motor has a torque of 2.2kg/cm and comes with the MG90 Motor. Most of the hobby Servo motors operates from 4.8V to 6.5V, the higher the voltage higher the torque we can achieve, but most commonly they are operated at +5V.

Features:

  • Operating Voltage: 4.8V to 6V (Typically 5V)
  • Max Stall Torque: 2.2 kg/cm (6V)
  • Operating speed is 0.1s/60° (4.8V)
  • Gear Type: Metal
  • Rotation : 0°-180°
  • Pin Definition: GND,VCC,SIGNAL
  • Weight of motor : 13.4gm



Applications:

  1. Robotics
  2. Conveyor Belts
  3. Camera Auto Focus
  4. Solar Tracking System
  5. Antenna Positioning
  6. Automatic Door Openers



Input Voltage 4.8V ~ 6V
Dead band width 5us
Operating speed 0.1s/60 degree (4.8V), 0.08s/60 degree (6V)
Stall torque 1.8kgfcm (4.8V), 2.2kgfcm (6V)
Interface PWM
Number of Pins 3 (VCC,GND,SIGNAL)
Product Dimensions 22.5 x 12 x 35.5mm
Product Weight 13.4 grams









Country of origin : China

  1. 1x Tower Pro MG90S Metal Gear Servo
  2. MotorSet of Horns: One Point, Two Point and Four Point
  3. 1 x Set of Screws
