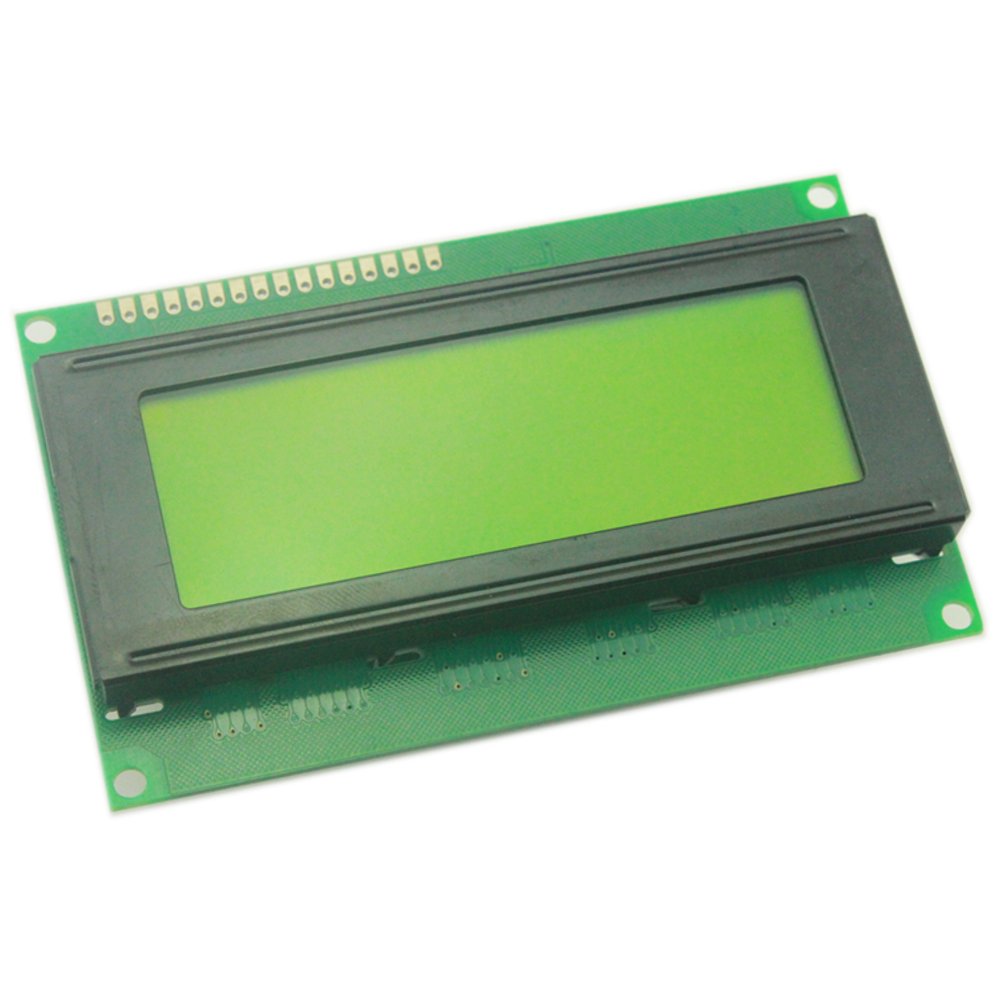

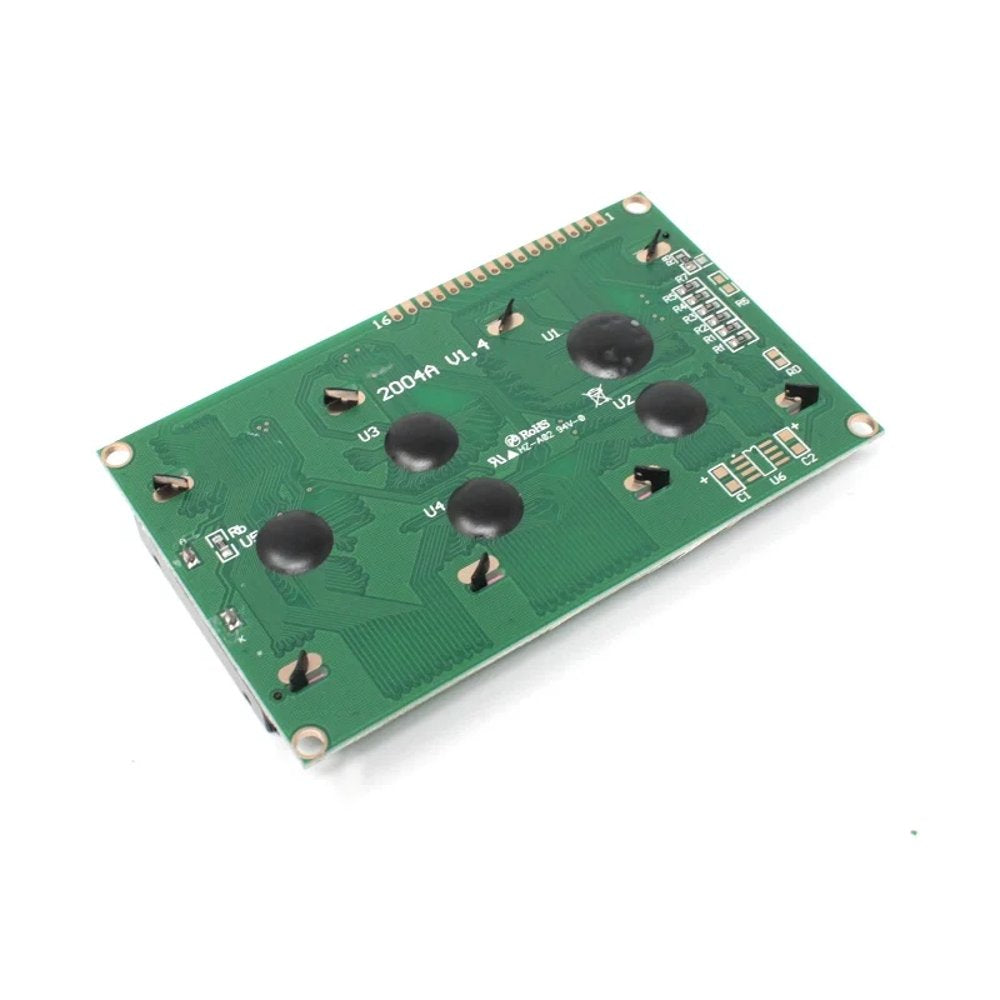

LCD2004 (20x4) Parallel LCD Display
LCD2004 (20x4) Parallel LCD Display
SKU: CT-0107
8 in stock
- HD44780 compatible Driver IC
- Parallel interface
- Input Voltage: 5V
- Resolution: 20x4 characters, 5x8 Dots with Cursor
- Working Temperature: 0°C~70°C
- Backlight Color: Blue/Yellow
- Pixel Color: White/Black
Couldn't load pickup availability
Get it before .
B2B customers can avail ₹38.13 ITC on this product.
Free Shipping over ₹799.
- Safe Handling
- Faster Shipping
- Easy Return
The LCD2004 (20x4) is designed with an industry standard HD44780 equivalent LCD controller.
The module provides a simple and cost-effective solution for adding a 20x4 character display to your project. It offers a very clear and high contrast text upon the background/backlight.
It operates with a 5V DC and comes with a single LED backlight that can easily be dimmed using a resistor or PWM.
The LCD can operate in 2 different modes:
- In 8 bit mode, all 8 data pins of the LCD are used.
- In 4 bit mode, only the 4 data pins of the LCD are used.
Therefore it can be controlled with only 6 digital lines (4-DATA + RS + EN).
To reduce the pin connection with the MCU, you can use PCF8574 LCD Controller
Features:
- HD44780 compatible Driver IC
- Parallel interface
- Input Voltage: 5V
- Resolution: 20x4 characters, 5x8 Dots with Cursor
- Working Temperature: 0°C~70°C
- Backlight Color: Blue/Yellow
- Pixel Color: White/Black
Display Character Address Code:
| Display Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DD RAM Address - Row 1 | 80 | 81 | 82 | 83 | 84 | 85 | 86 | 87 | 88 | 89 | 8A | 8B | 8C | 8D | 8E | 8F | 90 | 91 | 92 | 93 |
| DD RAM Address - Row 2 | C0 | C1 | C2 | C3 | C4 | C5 | C6 | C7 | C8 | C9 | CA | CB | CC | CD | CE | CF | D0 | D1 | D2 | D3 |
| DD RAM Address - Row 3 | 94 | 95 | 96 | 97 | 98 | 99 | 9A | 9B | 9C | 9D | 9E | 9F | A0 | A1 | A2 | A3 | A4 | A5 | A6 | A7 |
| DD RAM Address - Row 4 | D4 | D5 | D6 | D7 | D8 | D9 | DA | DB | DC | DD | DE | DF | E0 | E1 | E2 | E3 | E4 | E5 | E6 | E7 |
| Pin No | Symbol | Level | Function |
|---|---|---|---|
| 1 | GND | GND(0V) | |
| 2 | Vdd | Vcc(+5V±5%) | |
| 3 | Vo | Contrast Adjust | |
| 4 | RS | H/L | Register Select |
| 5 | RW | H/L | Read/Write |
| 6 | E | H/L | Enable Signal |
| 7 | D0 | H/L | Data Bit 0 |
| 8 | D1 | H/L | Data Bit 1 |
| 9 | D2 | H/L | Data Bit 2 |
| 10 | D3 | H/L | Data Bit 3 |
| 11 | D4 | H/L | Data Bit 4 |
| 12 | D5 | H/L | Data Bit 5 |
| 13 | D6 | H/L | Data Bit 6 |
| 14 | D7 | H/L | Data Bit 7 |
| 15 | BLA | Backlight + | |
| 16 | BLK | Backlight - |
| Pixel Color | White/Black |
| Backlight Color | Blue/Yellow |
| Input Voltage | 5V |
| Resolution | 20x4 Characters |
| Driver IC | HD44780/Compatible |
| Display Area | 64 x 16mm |
| Interface | Parallel Mode |
| Product Dimensions | 98 x 60 x 12mm |
| Operating range | 0°C to 50°C |
| Product Weight | 75 grams |
Country of origin : China
Note: The pins are not soldered to the display, but the Header pins are provided separately in the package.
